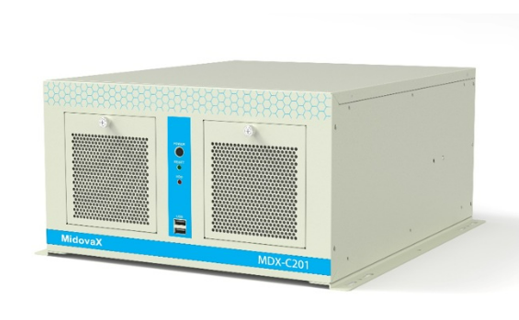

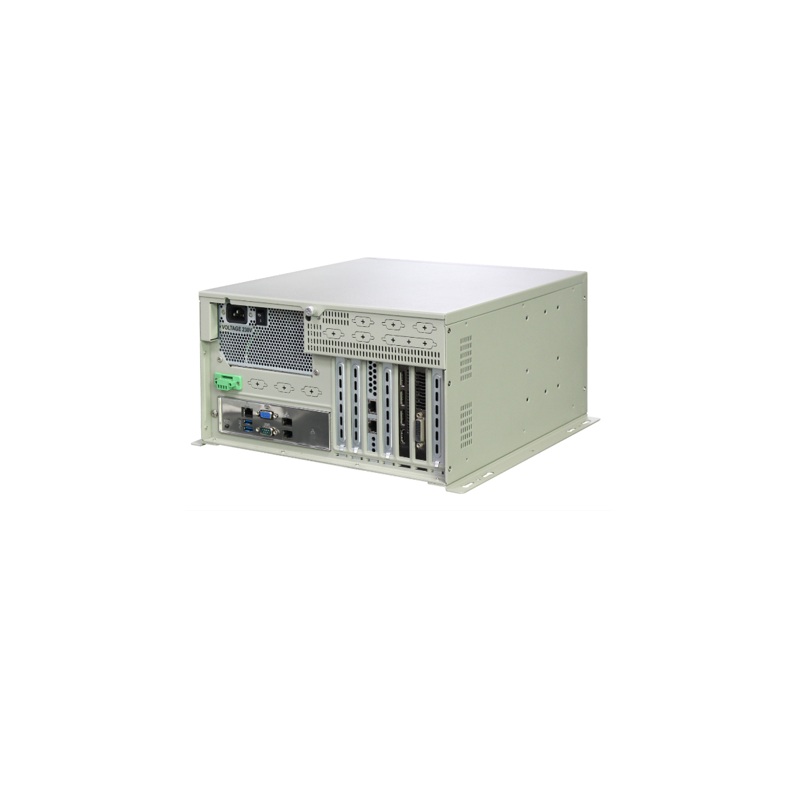

4U Chassis High Performance Edge Ai Inference Industrial Computer
The MDX-C201 industrial computer is a high-performance industrial PC, supporting Intel 13th/14th desktop Core i7/i5 processors and 2*16G DDR5 memory, supporting GPU/AI acceleration cards, making it suitable for complex computational tasks. It supports 512G SSD or 1TB HDD, offers a variety of interfaces (HDMI/DP, USB, RS232/422/485) and PCIe expansion slots, and supports PoE network card expansion. Widely used in automated production lines, quality inspection, robot control, data acquisition and monitoring, intelligent warehousing, and environmental monitoring, among other scenarios. Its operating temperature range is 0~50℃, adapting to harsh industrial environments, making it an ideal choice for industrial automation and intelligent manufacturing.
Model :
MDX-C201Product Advantages
Intel 13th/14th Gen Core i7/i5 65W Desktop Processor
Equipped with a high-performance Intel 13th/14th Gen Core i7/i5 processor, designed to deliver outstanding computational power for demanding machine vision and AI applications.
2*16GB DDR5 Memory
DDR5 architecture provides higher bandwidth, which is essential for handling complex image processing algorithms, deep learning models, and real-time video analysis.
Supports Full-length GPU/AI Acceleration Card
The system supports full-length GPU and AI acceleration cards, enabling the integration of high-performance graphical processing units (GPUs) for intensive computation.
Supports PoE Network Card Module Expansion
Flexibility with PoE (Power over Ethernet) network card module expansion, allowing users to easily integrate additional network interfaces and enhance communication capabilities.
Product Parameters
| Model | MDX-C201 Box-type Video Controller |
| Processor | Intel 12/13/14th Core i5/i7 Desktop CPU |
| Memory | DDR4-3200 32GB |
| Storage | 2.5" SATA SSD 512GB / 3.5" HDD 1TB |
| Display Interface | External HDMI/DP Display Output |
| LAN and Network Ports | 2* Gigabit Ethernet + 4* PoE Gigabit Ethernet Ports |
| USB Ports | 4* USB3.0 + 2* USB2.0 |
| Serial Ports | 2* RS232/422/485 Multi-protocol Ports |
| PCI Expansion | Supports 1* PCIe x16 (for GPU card), 1* PCIe x4, 2* PCIe x1 |
| Cooling System | 1CPU Fan + 1 Box Fan for Cooling |
| Operating Temperature | 0~50°C |
| Power Supply | AC input ATX standard power supply |
| Overall Dimensions | 310 x 310 x 162 mm |
