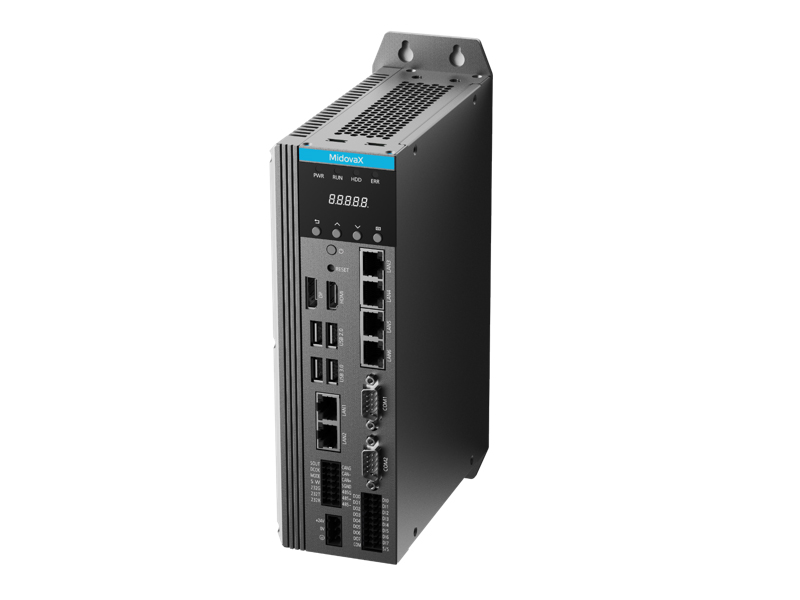

The MDX-C101 Industrial Automation Controller is designed based on the Intel 12th/13th Gen low-power Core processor platform, supporting i7/i5/Celeron series processors.

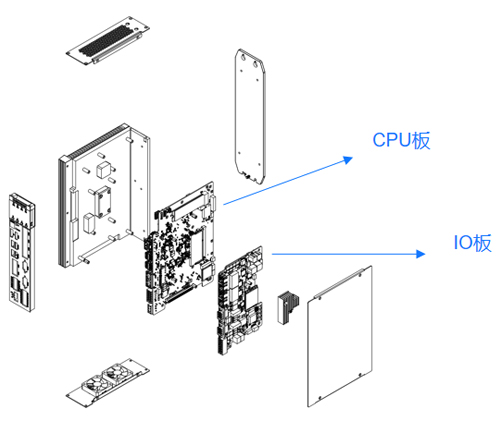

It adopts a modular design with a CPU board and expansion I/O board, supporting common industrial bus interfaces such as RS232/422/485, CAN2.0, USB2.0, USB3.0, high-speed DI/DO, PoE network ports, and more. It supports a wide DC voltage input range of 12~28V and operates in industrial environments with a temperature range of -20~60°C.
The controller also supports flexible expansion with wireless communication modules, including WiFi, Bluetooth, and 4G LTE. It is compatible with common operating systems like Windows & Linux, and features BIOS-level real-time performance tuning, making it suitable for industrial automation control and integrated visual motion control applications.
Model :
MDX-C101Product Advantages
Strong Computing Power:
Powered by Intel 12th/13th Gen low-power processors, supporting i7/i5/Celeron CPUs with up to 10 cores, 12 threads, and 96 processing units. Equipped with Intel Xe graphics for superior performance.
Rich Industrial Interfaces:
Supports RS232/422/485, CAN2.0, USB2.0, USB3.0, high-speed industrial DI/DO, and PoE network ports. Includes a built-in 128x64 dot matrix display for controller status, making it easy for industrial field applications and debugging.
Industrial Environment Adaptability:
Supports a wide DC voltage input range of 12~28V and a wide operating temperature of -20~60°C. Includes an integrated intelligent cooling fan. External UPS support for power failure protection of critical data.
Flexible Wireless Communication:
Supports flexible expansion with wireless communication modules such as WiFi, Bluetooth, and 4GLTE.
Real-Time Performance Optimization:
Supports popular operating systems like Windows & Linux, with BIOS-level real-time performance tuning for enhanced efficiency.
Product Parameters
| Hardware Configuration | Processor | Intel 12th/13th Gen i7/i5/i3 processor |
| Memory | Dual-channel DDR4 43200MHz, up to 64GB RAM | |
| Storage | M.22280 SATA/PCIe SSD | |
| Display Interface | Internal flat-panel display, external DP/HDMI display interface | |
| Network | 6*Intel I210 network (4 ports with POE power supply) | |
| USB | 2USB3.0 + 2USB2.0 ports | |
| CAN | Supports CAN2.0A & 2.0B, max speed 1Mbps | |
| M.22230 Key E (supports WiFi/BT) | ||
| Wireless Communication | M.22230 Key B (supports 4G LTE module) | |
| Serial Ports | 1*RS232 + 1RS485 Isolated Port (Terminal Block) 2*RS232/422/485 Isolated Ports (DB9 Connector) |
|
| Safety | Internal USB type-A, safe operation of TPM 2.0, and power-on security | |
| Digital I/O | 8 high-speed digital I/O (200KHz, 2500Vrms isolation) | |
| Operating System | Windows | Windows 10 |
| Linux | Ubuntu, Debian, CentOS | |
| Structural Cooling | Cooling Design | Aluminum heat sink, internal smart cooling fan |
| Mounting Method | Mounted with rear bracket for wall-mount installation | |
| Power Requirements | Machine size | (L)227mm*(W)160mm*(H)70mm |
| Power Requirements | 12-28VDC | |
| Dimensions | max 120W | |
| Working Temperature | -20°C to 60°C | |
| Storage Temperature | -40°C to 85°C | |
| Environmental Parameters | 5%-95% relative humidity | |
| Environmental Parameters | Vibration | 5g 9-150Hz, 1grms acceleration |
| Shock | 10G, 10ms, half-sine | |
| EMC | CE/FCC Class A |

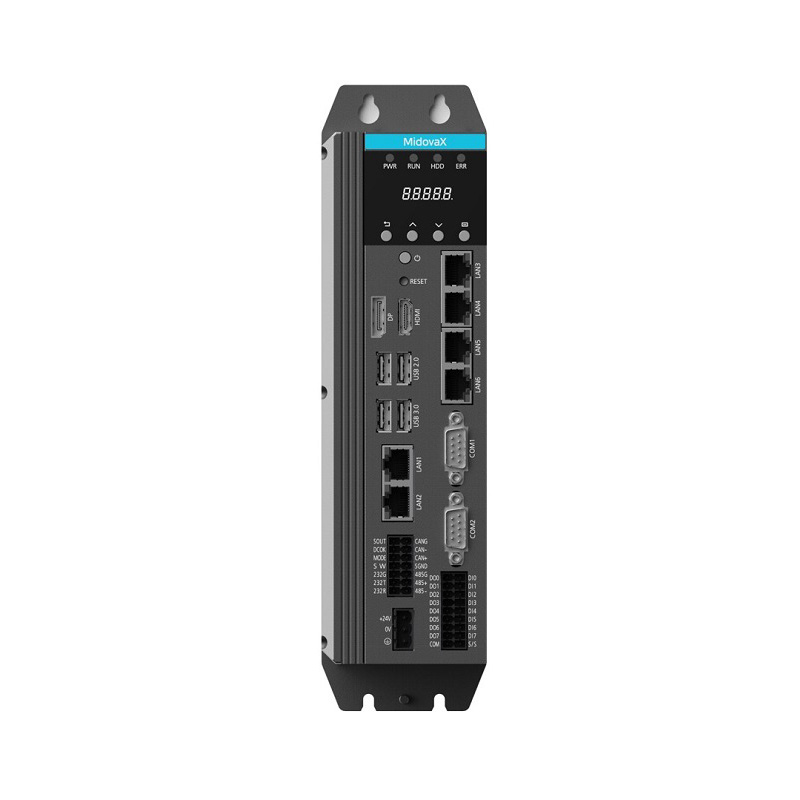

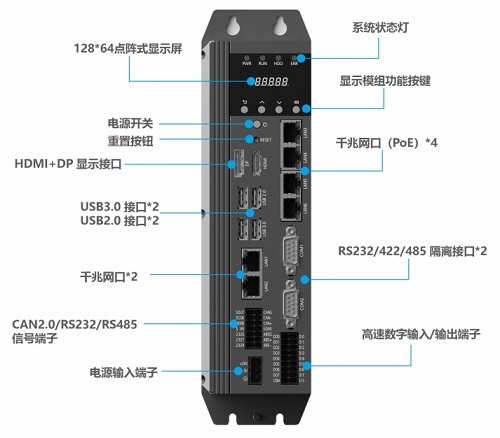

System structure and peripheral interfaces
 |
 |
Configuration List
| Product Model | Description |
| MDX-C101-CR-V10 | Intel 12th/13th Gen low-power CPU, 2x DDR4 SO-DIMM slots supporting up to 64GB memory, supports M.2 SATA/PCIe SSD, 128GB storage, DP+HDMI display output, 2xUSB 2.0, 6x Intel i210 GB Ethernet ports, 2xRS232/422/485 serial ports, 1xRS485+1xRS232 isolated port, 1xCAN2.0, 16x high-speed DI/DO, 12~28V DC power input, operating temperature: -20~60°C. |
| MDX-C101-i5-V10 | Intel 12th/13th Gen i5 CPU, 2x DDR4 SO-DIMM slots supporting up to 64GB memory, supports M.2 SATA/PCIe SSD, 128GB storage, DP+HDMI display output, 2xUSB 2.0, 6x Intel i210 GB Ethernet ports, 2xRS232/422/485 serial ports, 1xRS485+1xRS232 isolated port, 1xCAN2.0, 16x high-speed DI/DO, 12~28V DC power input, operating temperature: -20~60°C. |
| MDX-C101-i7-V10 | Intel 12th/13th Gen i7 CPU, 2x DDR4 SO-DIMM slots supporting up to 64GB memory, supports M.2 SATA/PCIe SSD, 128GB storage, DP+HDMI display output, 2xUSB 2.0, 6x Intel i210 GB Ethernet ports, 4xPoE support, 2xRS232/422/485 serial ports, 1xRS485+1xRS232 isolated port, 1xCAN2.0, 16x high-speed DI/DO, 12~28V DC power input, operating temperature: -20~60°C. |
Optional Accessories
| Component | Model | Description |
| Memory | 4GB, 8GB, 16GB | DDR4 SO-DIMM, supports up to 2 memory modules |
| M.2 SATA SSD | 256GB, 512GB, 1TB, 2TB | Supports SATA3.0, M.2 KeyM 2280 SATA SSD |
| M.2 PCIe SSD | 256GB, 512GB, 1TB, 2TB | Supports PCIe3.0 x4, M.2 KeyM 2280 PCIe SSD |
| WiFi Module | M.2 WiFi Module + External Antenna | Supports PCIe3.0 x1 + USB2.0, M.2 KeyE 2230 WiFi module with external antenna |
| 3G/4G Module | M.2 3G/4G Card Module + External Antenna | Supports PCIe3.0 x1 + USB2.0, M.2 KeyB 3050 3G/4G wireless module with external antenna |
Product Application
The MDX-C101 Industrial Automation Controller is designed based on the Intel 12th/13th Gen low-power Core processor platform, supporting i7/i5/Celeron series processors. It adopts a modular design with a CPU board and expansion I/O board, supporting common industrial bus interfaces such as RS232/422/485, CAN2.0, USB2.0, USB3.0, high-speed DI/DO, PoE network ports, and more. It supports a wide DC voltage input range of 12~28V and operates in industrial environments with a temperature range of -20~60°C. The controller also supports flexible expansion with wireless communication modules, including WiFi, Bluetooth, and 4G LTE. It is compatible with common operating systems like Windows & Linux, and features BIOS-level real-time performance tuning, making it suitable for industrial automation control and integrated visual motion control applications.
