Industrial Computers and Controllers

The MDX-C101 Industrial Automation Controller is designed based on the Intel 12th/13th Gen low-power Core processor platform, supporting i7/i5/Celeron series processors.   It adopts a modular design with a CPU board and expansion I/O board, supporting common industrial bus interfaces such as RS232/422/485, CAN2.0, USB2.0, USB3.0, high-speed DI/DO, PoE network ports, and more. It supports a wide DC voltage input range of 12~28V and operates in industrial environments with a temperature range of -20~60°C.   The controller also supports flexible expansion with wireless communication modules, including WiFi, Bluetooth, and 4G LTE. It is compatible with common operating systems like Windows & Linux, and features BIOS-level real-time performance tuning, making it suitable for industrial automation control and integrated visual motion control applications.

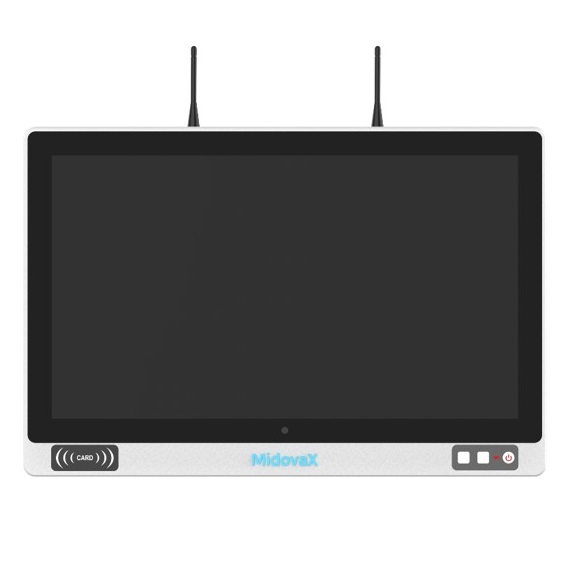

The MDX-P101 industrial panel PC is designed based on the Intel ultra-low power Elkhart Lake platform, supporting a quad-core, quad-thread 2.0GHz processor. It features a 21.5-inch large touch display with wide viewing angles, high brightness, and long-lasting backlight design. The projected capacitive touchscreen supports multi-touch, high response, and high-strength surface glass, and is operable with gloves. It supports common industrial peripheral interfaces such as HDMI/DP, RS232/422/485, USB2.0, USB3.0, and Gigabit Ethernet, with flexible configurations for wireless communication options like WiFi6, Bluetooth, 4G LTE, and 5G.   The entire unit is designed with a full aluminum body, providing a solid structure with excellent shock resistance and heat dissipation. The front panel achieves an IP65 protection rating and supports a wide temperature range of -20°C to 60°C, along with a 9-36VDC wide voltage input range, making it suitable for industrial manufacturing environments. It comes with an integrated speaker unit and optional accessories such as an NFC/RFID card reader, barcode scanner, and camera module. The front panel’s quick operation buttons can be customized for software-specific functions, allowing for one-click shortcuts.   This model is ideal for various industrial applications, including Industrial visualization interface，MES operating station，E-SOP, Human-Mchine Interfaces, Integrated Display and Control System.

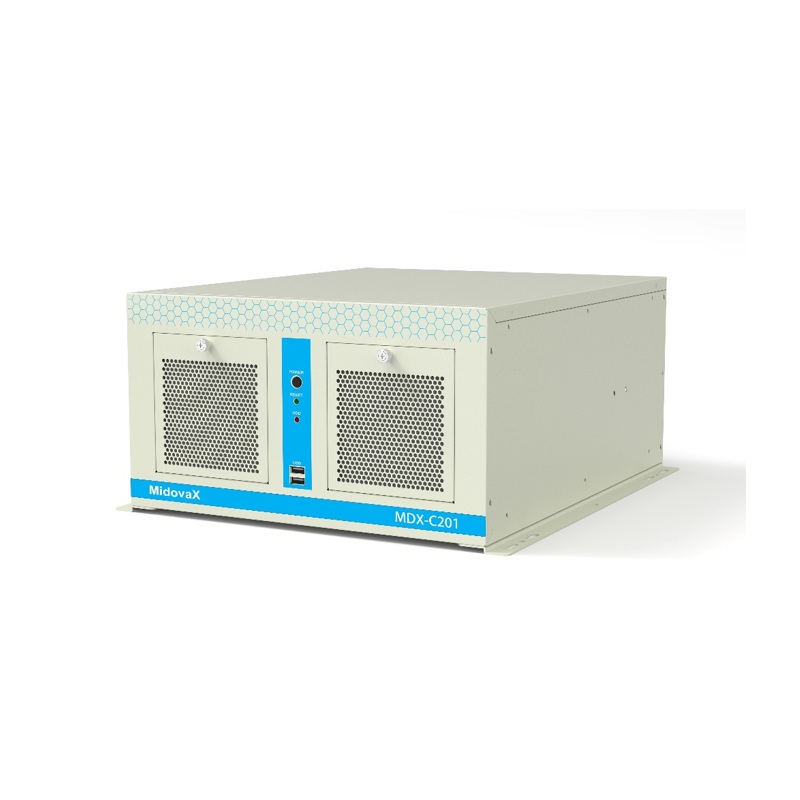

The MDX-C201 industrial computer is a high-performance industrial PC, supporting Intel 13th/14th desktop Core i7/i5 processors and 2*16G DDR5 memory, supporting GPU/AI acceleration cards, making it suitable for complex computational tasks. It supports 512G SSD or 1TB HDD, offers a variety of interfaces (HDMI/DP, USB, RS232/422/485) and PCIe expansion slots, and supports PoE network card expansion. Widely used in automated production lines, quality inspection, robot control, data acquisition and monitoring, intelligent warehousing, and environmental monitoring, among other scenarios. Its operating temperature range is 0~50℃, adapting to harsh industrial environments, making it an ideal choice for industrial automation and intelligent manufacturing.
