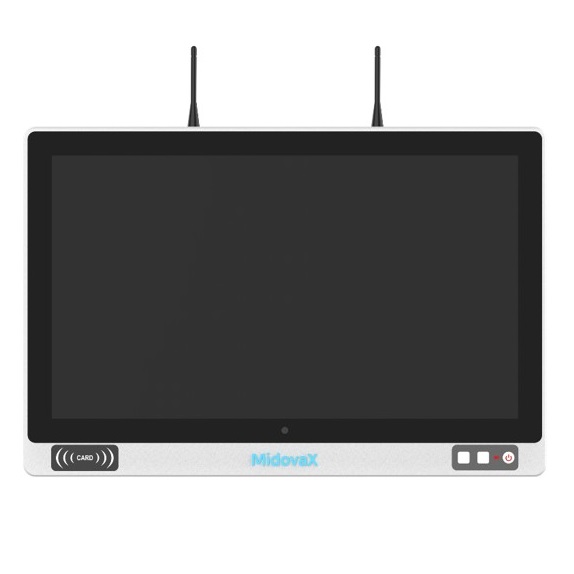

21.5-Inch Display&Computing All-In-One Industrial Panel PC
The MDX-P101 industrial panel PC is designed based on the Intel ultra-low power Elkhart Lake platform, supporting a quad-core, quad-thread 2.0GHz processor. It features a 21.5-inch large touch display with wide viewing angles, high brightness, and long-lasting backlight design. The projected capacitive touchscreen supports multi-touch, high response, and high-strength surface glass, and is operable with gloves. It supports common industrial peripheral interfaces such as HDMI/DP, RS232/422/485, USB2.0, USB3.0, and Gigabit Ethernet, with flexible configurations for wireless communication options like WiFi6, Bluetooth, 4G LTE, and 5G.
The entire unit is designed with a full aluminum body, providing a solid structure with excellent shock resistance and heat dissipation. The front panel achieves an IP65 protection rating and supports a wide temperature range of -20°C to 60°C, along with a 9-36VDC wide voltage input range, making it suitable for industrial manufacturing environments. It comes with an integrated speaker unit and optional accessories such as an NFC/RFID card reader, barcode scanner, and camera module. The front panel’s quick operation buttons can be customized for software-specific functions, allowing for one-click shortcuts.
This model is ideal for various industrial applications, including Industrial visualization interface，MES operating station，E-SOP, Human-Mchine Interfaces, Integrated Display and Control System.
Model :
MDX-P101Product Advantages
Intel J6412/ADL-N Series Processor,low-power
Powered by the Intel J6412/ADL-N series Atom low-power processor, the MDX-P101 delivers excellent performance while maintaining energy efficiency.
Optimal Memory and Storage for Industrial Use
Equipped with 8GB DDR4 memory and 256GB M.2 SATA storage, the MDX-P101 ensures smooth multitasking and fast data access.
High-Performance Projected Capacitive Touchscreen
The full-flat capacitive touchscreen offers a 10-point touch interface, providing high responsiveness and multi-touch capability.
Versatile Wireless Communication
With support for Wi-Fi 6, Bluetooth, and optional 4G LTE/5G connectivity, the MDX-P101 ensures fast and reliable wireless communication, which is crucial for remote monitoring, control, and data transfer in smart manufacturing and automation.
Product Parameters
| Model | MDX-P101 Industrial Panel PC |
| Display | 21.5" TFT-LCD, Resolution: 1920×1080, Brightness: >250 cd/cm² |
| Touch | Projected Capacitive Touch, 10-point Touch |
| Processor | Intel J6412/ADL-N |
| Memory | DDR4-3200 8GB |
| Storage | M.2 2280 SATA 256GB |
| Display Output | External HDMI |
| LAN Ports | 2 x Gigabit Ethernet |
| USB Ports | 2 x USB3.0, 2 x USB2.0 |
| Wireless | Wi-Fi 802.11 a/b/g/n, Bluetooth 4.2, 5G/4G (Optional) |
| Serial Ports | 5 x RS232/RS485 |
| Audio | 1 x Speaker output, 1 x Fan connector (5W output) |
| Optional | Camera, NFC/RFID Reader, Barcode Scanner |
| DI/DO | 8-bit Digital I/O |
| Operating Temp | 0~50°C |
| Power Input | 12V DC (Wide voltage range: 9-36V) |
| Dimensions | 535.2 x 357.7 x 65 mm |
| Protection Level | Front Panel IP65 |
| Mounting | VESA Mount, Wall Mount, Desktop Mount |

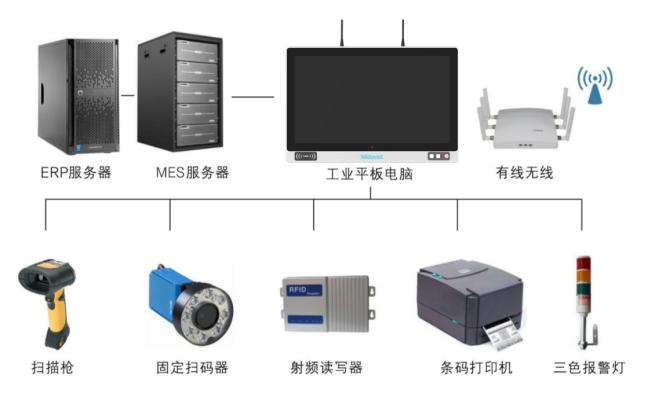

Product Application (MES Workstation)

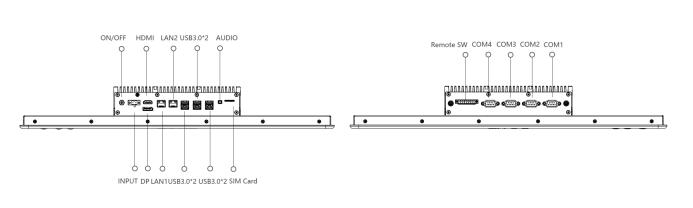

Interface Specifications

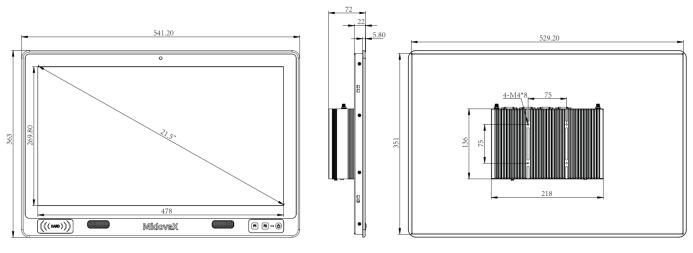

Machine Size

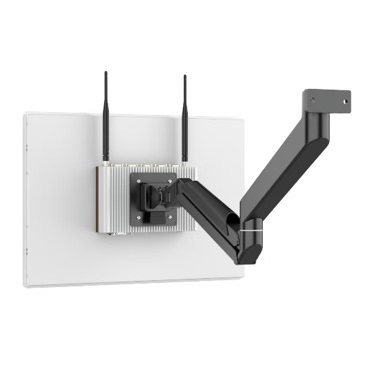

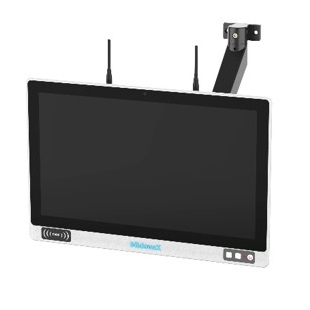

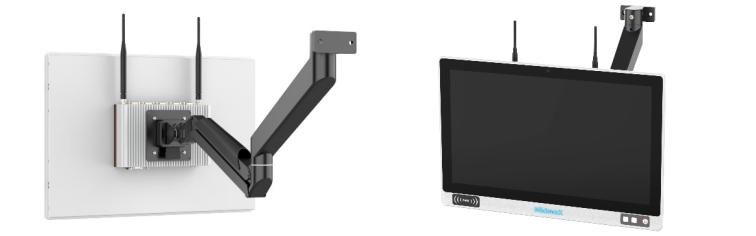

Installation Method
